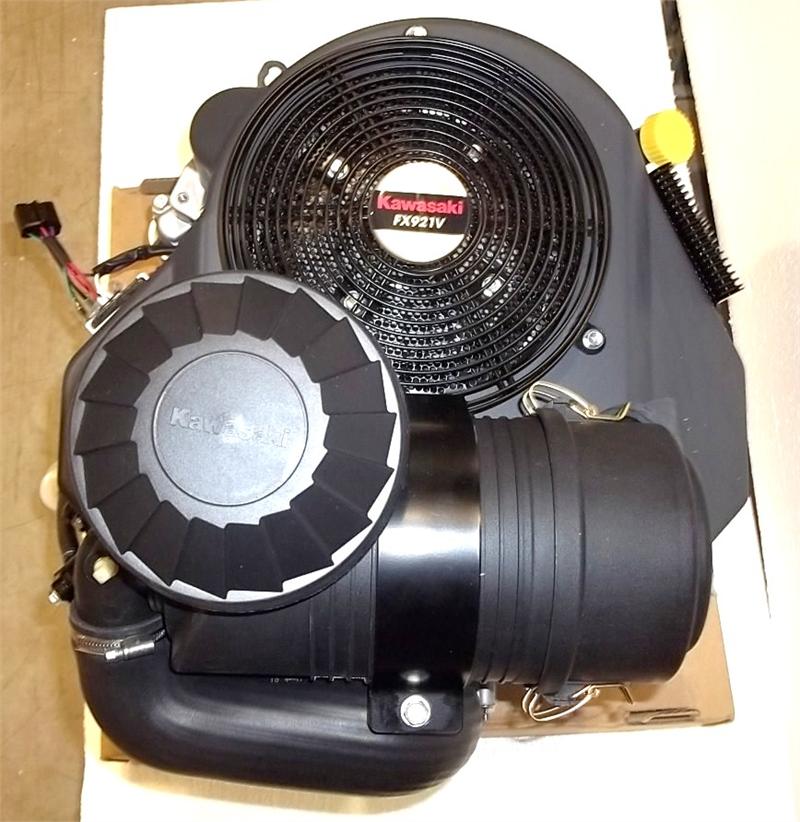

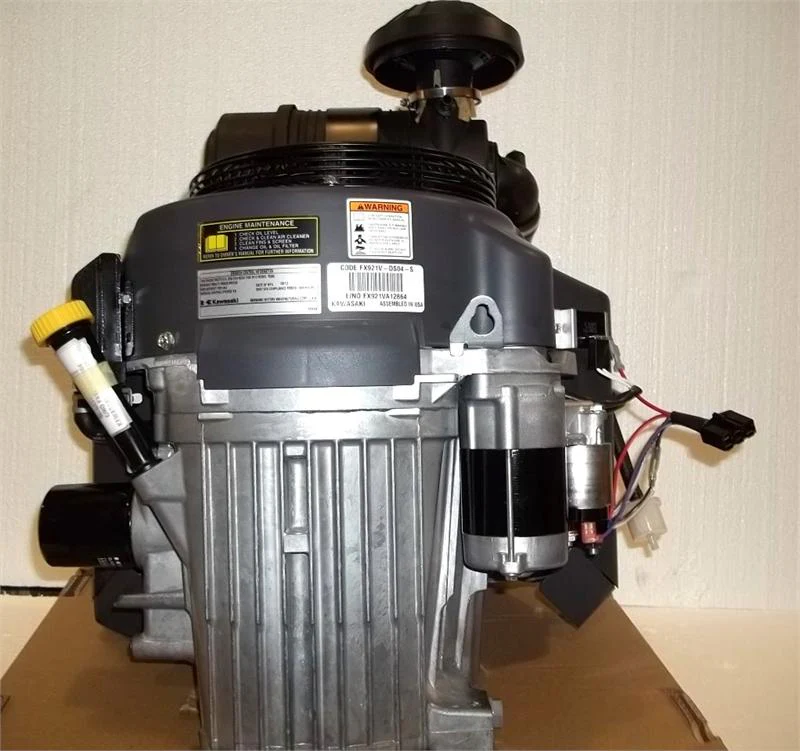

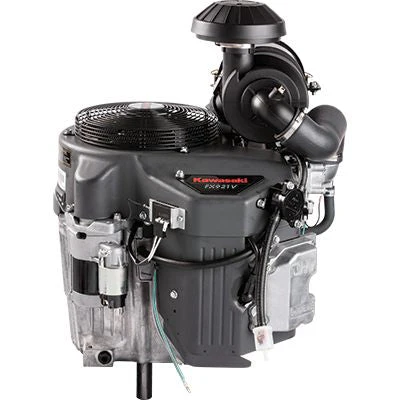

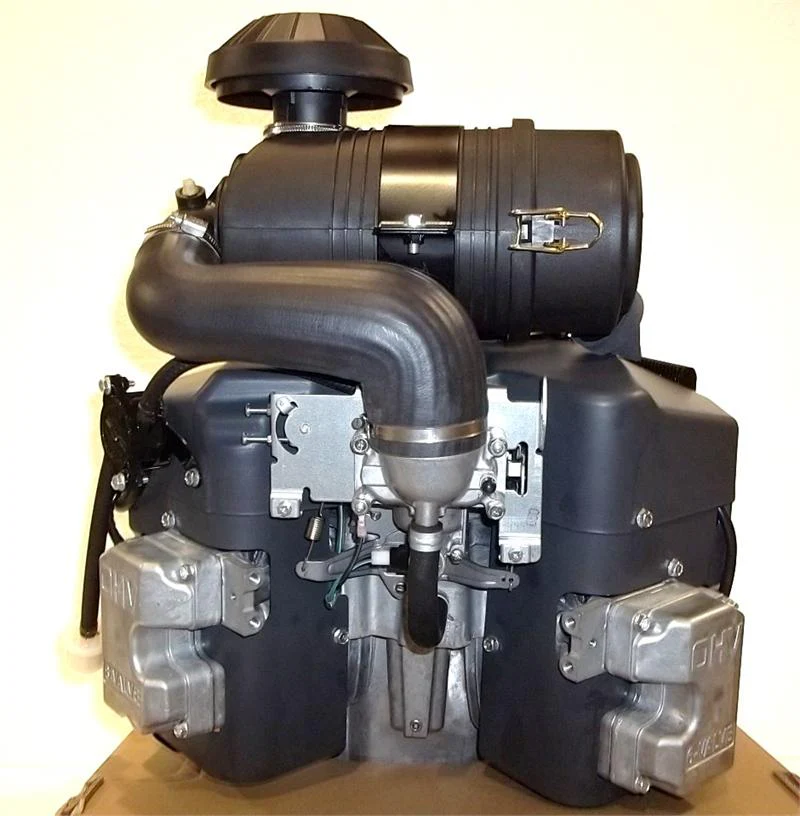

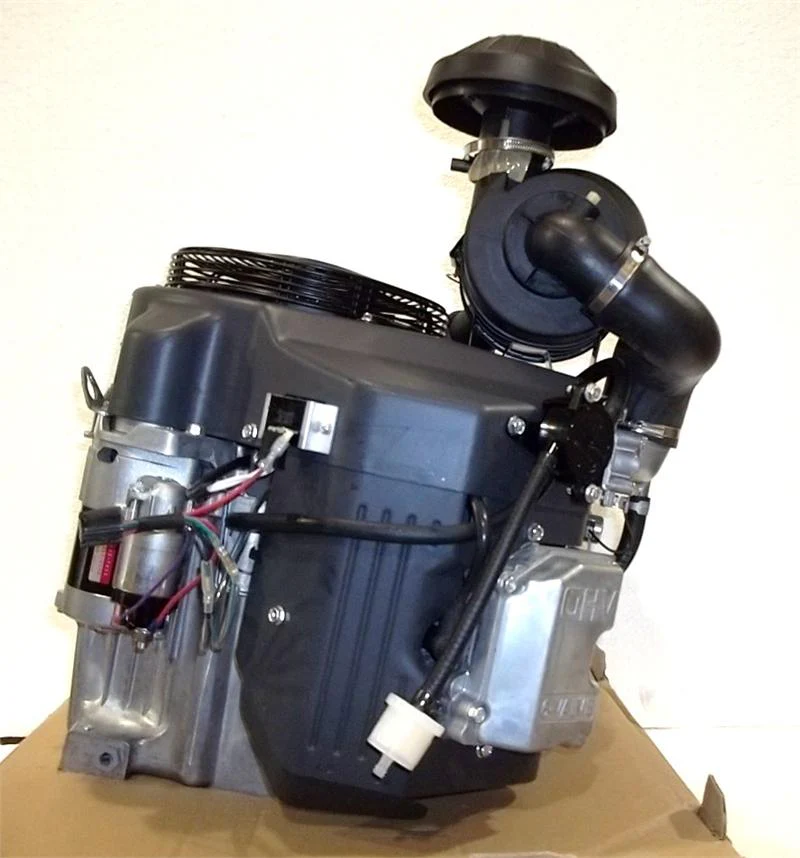

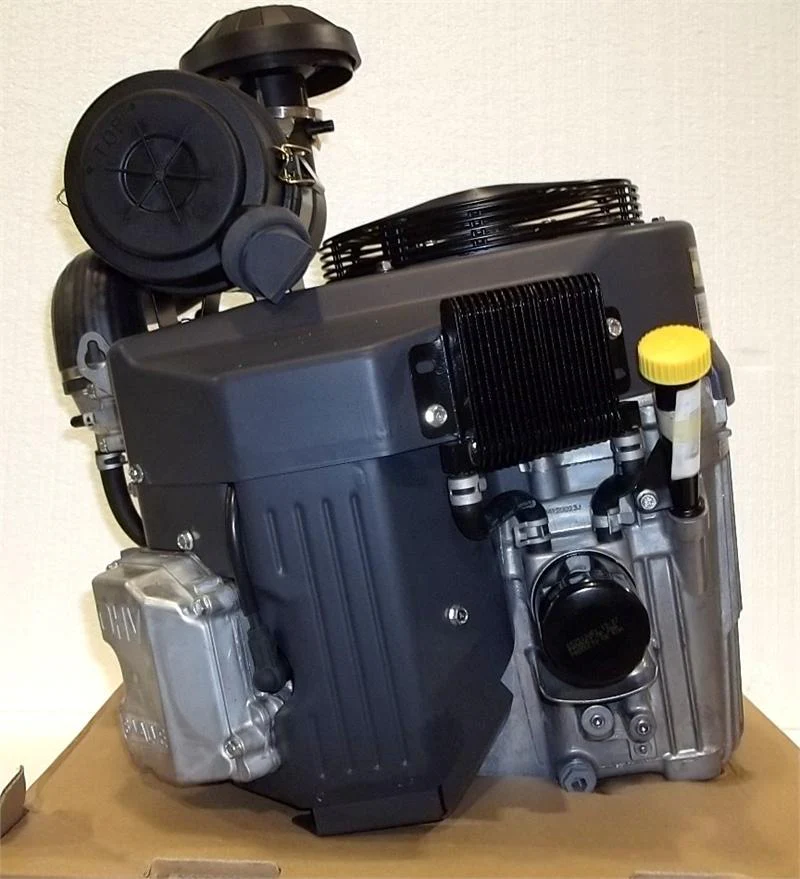

Kawasaki Vertical 31 HP 999cc V-Twin OHV Engine ES 15amp 1-1/8" x 4-5/16" #FX921V-HS04
Kawasaki FX Series are compact, 90-degree V-twin engines which feature hemispherical combustion chambers and overhead V-valve technology that helps ensure low emissions, high power, and smooth operation. Other features include a twin barrel, internally vented carburetor with fuel shut-off solenoid, large capacity fuel pump, and dual stage canister air filter.
Forced Air-Cooled V-twin 4-cycle Vertical Shaft OHV Gasoline Engine
34hp Gross HP now rated Kawasaki Critical 31HP Rating
31hp Kawasaki OHV
1-1/8" x 4-5/16" shaft, tapped 7/16" with 1/4" keyway.
1-1/8" x 4-5/16" shaft, tapped 7/16" with 1/4" keyway.
Electric start, 15amp alternator.
Less fuel tank
Seperate choke & throttle
Seperate choke & throttle
Less Muffler
Heavy Duty Dual Stage Canister Air Filter
Heavy Duty Dual Stage Canister Air Filter
High Efficiency Oil Cooler
Large Capacity Fuel Pump
Replacement engine for commercial zero turns and riding mowers.
Large Capacity Fuel Pump
Replacement engine for commercial zero turns and riding mowers.
Model FX921V-HS04 (Replaces FX921V-DS04).
FEATURES:
- Overhead v-valve
- 90° V-twin
- High performance lubrication system
- Electronic spark ignition
- Automatic compression release
- Three valves per cylinder
- High efficiency oil cooler
- Rotating grass screen
- Dual stage canister air filter
- Cast-iron cylinder liners
- Metal engine cover
- Heavy-duty shift-type starter
- Twin barrel, internally vented carburetor with fuel shut-off solenoid
| SPECIFICATIONS | |
|---|---|
| DISPLACEMENT |
999cm3 (61.0cu. in.)
|
| NUMBER OF CYLINDERS |
2
|
| BORE X STROKE |
3.5 x 3.15 in. (89.15 x 80mm)
|
| COMPRESSION RATIO |
8:4:1
|
| OIL CAPACITY |
1.8U.S. qt (1.7liters)
|
| MAXIMUM POWER |
31.0hp (23.1kW)
at 3,600rpm
|
| MAXIMUM TORQUE |
54.3ft lbs (73.6N·m)
at 2,400RPM
|
| DRY WEIGHT |
138.0lbs (62.6kg)
|
Kawasaki Mufflers (not included)
Kawasaki FS/FX 999cc Engine Muffler #KAW999MUFZTRSS |
Kawasaki 999cc Engine Oil Filter Side Muffler Kit #KAW999MUFOF |
