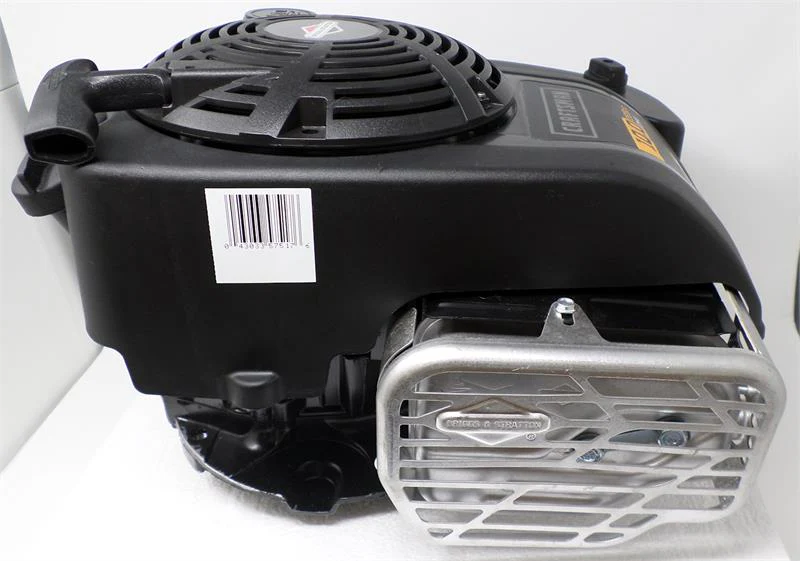

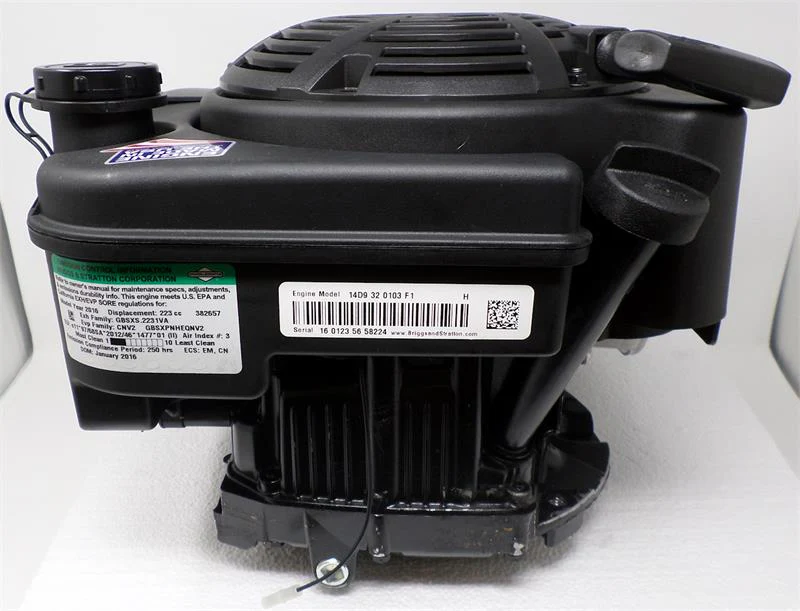

Briggs & Stratton 223cc Vertical Engine 10TP 25mm x 3-5/32" HF #14D932-0103

Briggs & Stratton 223cc Vertical Engine 10TP 25mm x 3-5/32" HF #14D932-0103

Briggs & Stratton 223cc Vertical Engine 10TP 25mm x 3-5/32" HF #14D932-0103

Note: the oil drain plug on the mounting surface. May interfere with mounting surface

Professional Series Engine

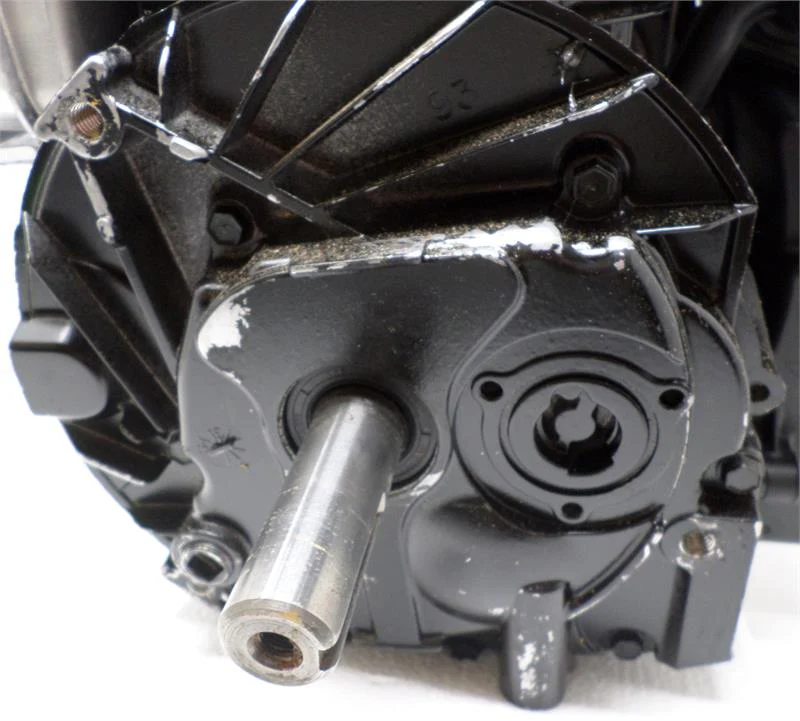

25mm x 3-5/32" shaft,  tapped 3/8-24 , 1/4" keyway
Fixed speed throttle design.
Heavy Flywheel Engine
2600 rpm top speed setting.
Model 14D932-0103.


Engine Fuel Gasoline
Configuration Vertical
Cylinders One
SKU 14D932-0103-F1
Air Cleaner AIR CLEANER, PAPER ELEMENT OVAL
Bearings BEARINGS, PLAIN MAG
Blower Housing REWIND COVER, LS, 290 SATIN BLACK
Bore Type Koolbore
Bore Size 2.913
Stroke 2.040
Casing Clamps CASING CLAMP & SCREW, WITHOUT
Controls Groups CONTROL GROUP 62, QUANT
Cylinder Head CYLINDER, ALUMINUM
Deflectors DEFLECTORS, WITHOUT
Dipsticks DIPSTICK, OPPOSITE CA
Oil Drain OIL FILL, OPPOSITE
Flywheel FLYWHEEL, HVY, CAST IRON, REW ONLY
Exhaust MUFFLER, PERFORMANCE W/TUB
Spark Plug SPARK PLUG, SUREFIRE
Starting System STARTER, REWIND POSITION - 5:30 O'CLOCK
$89.98

Original: $299.95

-70%
Briggs & Stratton 223cc Vertical Engine 10TP 25mm x 3-5/32" HF #14D932-0103—

$299.95

$89.98

Product Information

Shipping & Returns

Description

Briggs & Stratton 223cc Vertical Engine 10TP 25mm x 3-5/32" HF #14D932-0103

Note: the oil drain plug on the mounting surface. May interfere with mounting surface

Professional Series Engine
25mm x 3-5/32" shaft,  tapped 3/8-24 , 1/4" keyway
Fixed speed throttle design.
Heavy Flywheel Engine
2600 rpm top speed setting.
Model 14D932-0103.


Engine Fuel Gasoline
Configuration Vertical
Cylinders One
SKU 14D932-0103-F1
Air Cleaner AIR CLEANER, PAPER ELEMENT OVAL
Bearings BEARINGS, PLAIN MAG
Blower Housing REWIND COVER, LS, 290 SATIN BLACK
Bore Type Koolbore
Bore Size 2.913
Stroke 2.040
Casing Clamps CASING CLAMP & SCREW, WITHOUT
Controls Groups CONTROL GROUP 62, QUANT
Cylinder Head CYLINDER, ALUMINUM
Deflectors DEFLECTORS, WITHOUT
Dipsticks DIPSTICK, OPPOSITE CA
Oil Drain OIL FILL, OPPOSITE
Flywheel FLYWHEEL, HVY, CAST IRON, REW ONLY
Exhaust MUFFLER, PERFORMANCE W/TUB
Spark Plug SPARK PLUG, SUREFIRE
Starting System STARTER, REWIND POSITION - 5:30 O'CLOCK
